Industrial Remote Control For Variable Frequency Winch

Industrial Remote Control For Variable Frequency Winch
Industrial Remote Control For Variable Frequency Winch Industrial Remote Control For Variable Frequency Winch Industrial Remote Control For Variable Frequency Winch

Large Image :  Industrial Remote Control For Variable Frequency Winch

Product Details:
Place of Origin: Jiangsu,China
Brand Name: DKLD
Certification: CE
Model Number: DHQ-2F1M
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Export-Standard Carton Box with PE Foam Inside
Delivery Time: 15 days
Supply Ability: 100 sets per week

Industrial Remote Control For Variable Frequency Winch

Description

Industrial Remote Control For Variable Frequency Winch

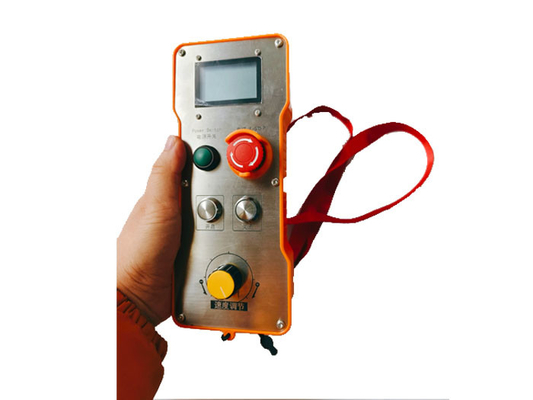

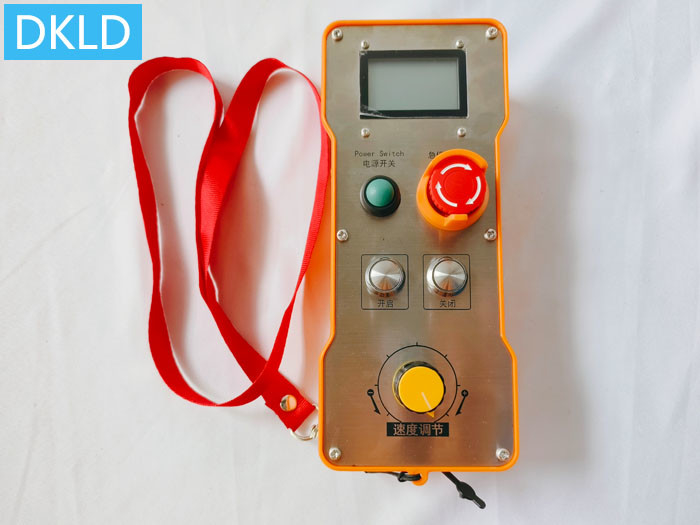

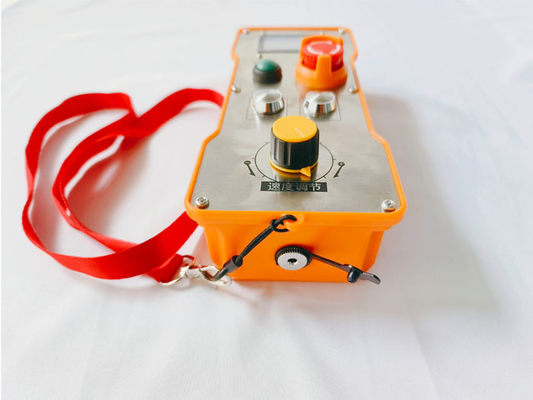

DHQ-2F1M (DC24V/1 generator, 1 receiver/4 switch values, 2 channels 0-10V), 1 three-position self reset twist switch+1 three-position self-locking hold twist switch. The former is marked with up and down straight arrows, the latter is marked with forward and reverse rotation arrows, 2 speed control knobs (speed control/SPEED), conventional increase and decrease signs (without Chinese), 1 "ENABLE" button, start (START) Emergency stop (STOP), power indicator light (POWER), signal indicator light (Signal);

Main function: 1 three-position self reset torsion switch, used for a self reset mode, which is a forward and reverse mechanism switch quantity controlled by a jog. One three position self-locking torsion switch, used for the forward and reverse movements of a mechanism to maintain the operating switch value. Two speed control knobs, capable of infinitely adjusting the speed of two forward and reverse mechanisms, with a speed range of 0-10V.

Product highlight: Good anti-interference performance, with unique identification codes between each remote control transmitter and receiver, reaching hundreds of millions of sets, never repeating, and strictly avoiding mutual interference and potential interference. And the remote control has up to 50-256 frequency points, and each set in the same environment can be configured with separate frequency points. Even if the frequency points overlap, given the uniqueness of the ID identification code, there will be no impact on each other, ensuring safety and reliability.

Usage: Can be used for rope saw, grinder, variable frequency motor, variable frequency winch, variable frequency electric hoist, stone cutting machine, lawn machine, concrete cutting machine, rope saw cutting machine, grinder, polishing machine, roller rack, rail car, electric flat car, variable frequency elevator, variable frequency crane, etc.

Technical parameters: remote control distance of 100 meters, 250 meters, working temperature of -35 ° -+75 °, transmitter power supply of 3 No. 5 dry batteries of 4.5V, receiver terminal conventional working voltage of 12-24V AC/DC, other voltages of AC220V or AC380V, etc., can be adapted through external transformer voltage conversion.

Model and configuration instructions: This machine model is DH-Z2M2B4K (2-way 0-10V), with 1 transmitter and 1 receiver as standard. The transmitter antenna is built-in, and the receiver is equipped with an external extended suction cup antenna (1 meter long feeder), which is adsorbed on the outside of the distribution box and installed inside the receiver.

Industrial Remote Control For Variable Frequency Winch 0

Industrial Remote Control For Variable Frequency Winch 1
