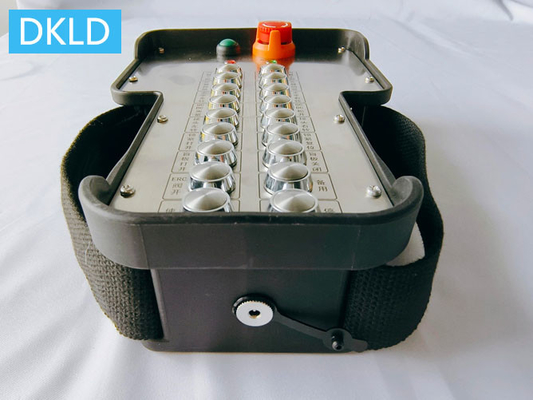

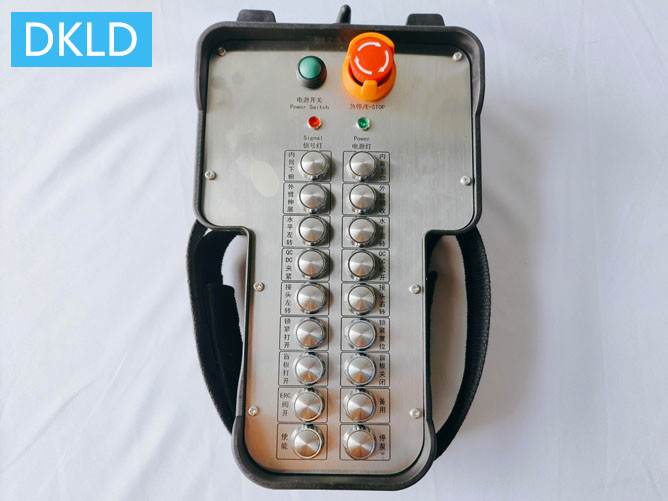

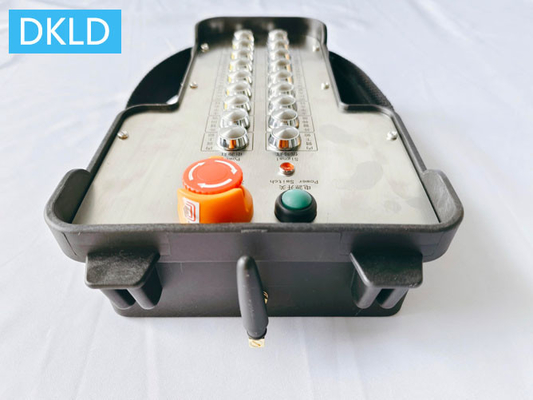

18 Way Explosion-Proof Industrial Remote Control

18 Way Explosion-Proof Industrial Remote Control
18 Way Explosion-Proof Industrial Remote Control 18 Way Explosion-Proof Industrial Remote Control 18 Way Explosion-Proof Industrial Remote Control

Large Image :  18 Way Explosion-Proof Industrial Remote Control

Product Details:
Place of Origin: Jiangsu,China
Brand Name: DKLD
Certification: CE
Model Number: FBDH-Q18F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Export-Standard Carton Box with PE Foam Inside
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per week

18 Way Explosion-Proof Industrial Remote Control

Description
Features: High-precision, High-sensitivity Color: Black
Function: Control Crane Material: Industrial Grade Plastic
Name: Crane Remote Control Size: 260mm X 160mm X 65mm
Warranty: 1 Year Weight: 1000g

18 Way Explosion-Proof Industrial Remote Control

Description:The entire set includes 1 transmitter+1 receiver+1 analog input collector, with a built-in receiver and an external extended suction cup antenna.

Once the weight exceeds the set upper limit value, it can only descend and cannot ascend. At this time, the remote control has a self program judgment internally and automatically determines the action control logic of only descending but not ascending.

If the receiver directly outputs RS485, it is directly connected to the overload limiter with RS485 interface, and there is no need to lay out the collector separately. Other voltages such as AC220V or AC380V are adapted through external transformers.


18 Way Explosion-Proof Industrial Remote Control 0
18 Way Explosion-Proof Industrial Remote Control 1

Application scenarios

18 Way Explosion-Proof Industrial Remote Control 2
18 Way Explosion-Proof Industrial Remote Control 3

Product highlight: Good anti-interference performance, with unique identification codes between each remote control transmitter and receiver, reaching hundreds of millions of sets, never repeating, and strictly avoiding mutual interference and potential interference. And the remote control has up to 50-256 frequency points, and each set in the same environment can be configured with separate frequency points. Even if the frequency points overlap, given the uniqueness of the ID identification code, there will be no impact on each other, ensuring safety and reliability.




                                                   Emitter

Frequency MHZ
433


Transmitter RF power mW

Less than 10



Remote control distance M

150/250


Power supply DC

DC4.5V

Modulation
GFSK

Frequency control
PLL

Antenna impedance Ω
50

Command response time ms

Less than 40



Working temperature ℃
-35℃~75℃

Protection grade
IP65




                                          Receiver



Frequency MHZ
433

Receiving sensitivity dBM

-112



Remote control distance M
150/250

Power supply DC
DC12-24V

Modulation
GFSK

Frequency control
PLL

Antenna impedance Ω
50

Command response time ms

Less than 40



Working temperature ℃
-35℃~75℃

Antenna mode

External suction cup type
