Twelve-way dual speed switch industrial remote control

Twelve-way dual speed switch industrial remote control
Twelve-way dual speed switch industrial remote control Twelve-way dual speed switch industrial remote control Twelve-way dual speed switch industrial remote control Twelve-way dual speed switch industrial remote control

Large Image :  Twelve-way dual speed switch industrial remote control

Product Details:
Place of Origin: Jiangsu,China
Brand Name: DKLD
Certification: CE
Model Number: DH-12
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Export-Standard Carton Box with PE Foam Inside
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per week

Twelve-way dual speed switch industrial remote control

Description

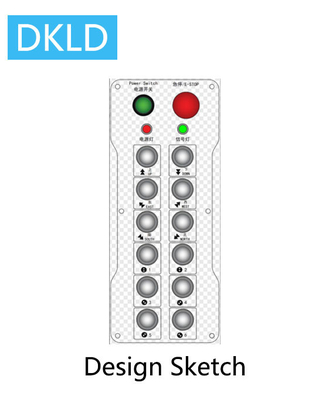

12 way dual speed switch industrial remote control with button text identification: UP, DOWN, EAST, West, South, North, 1, 2, 3, 4, 5, 6, START, STOP, POWER, and Signal;

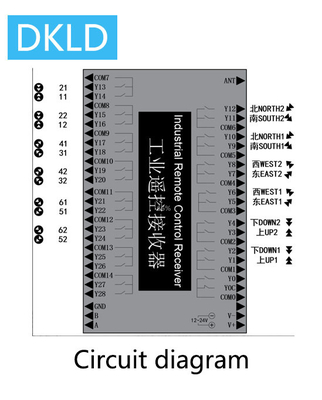

Main function: Control the equipment to run up, down, east, west, north, and south in a conventional jog mode, with up and down interlocking, east-west interlocking, north-south interlocking, 1 and 2 jog and interlocking, 3 and 4 jog and interlocking, and 5 and 6 jog and interlocking. Each action can achieve fast and slow control, with conventional pressing to execute slow, and quick double clicking to change to dual speed. 12 dual speed buttons, each corresponding to 2 normally open relay outputs at the receiver end. The upper and lower, east and west, south and north, 1 and 2, 3 and 4, 5 and 6, and 2 speed relays can be designed as shared.

Product highlight: Good anti-interference performance, with unique identification codes between each remote control transmitter and receiver, reaching hundreds of millions of sets, never repeating, and strictly avoiding mutual interference and potential interference. And the remote control has up to 50-256 frequency points, and each set in the same environment can be configured with separate frequency points. Even if the frequency points overlap, given the uniqueness of the ID identification code, there will be no impact on each other, ensuring safety and reliability.

Usage: crane, overhead crane, crane, electric hoist, gantry crane, cantilever crane, portal crane, port crane, wharf crane, ship crane, bridge erecting machine, beam lifter, etc. within the 4-point switching value, as well as elevators, hoists, lifting platforms, winch, motors, plate shears, sand screeners, concrete pumps, electric flat cars, industrial furnace doors, winch winches, etc.

Technical parameters: remote control distance of 100 meters, 250 meters, working temperature of -35 ° -+75 °, transmitter power supply of 3 No. 5 dry batteries of 4.5V, receiver terminal conventional working voltage of 12-24V AC/DC, other voltages of AC220V or AC380V, etc., can be adapted through external transformer voltage conversion.

Model and configuration instructions: This machine model comes standard with 1 transmitter and 1 receiver. The transmitter antenna is built-in, and the receiver is equipped with an external extended suction cup antenna (1 meter long feeder), which is attached to the outside of the distribution box and installed inside the receiver.
