Product Details:
|
| Transmitter Function: | 20 Buttons | Size: | 260*160*65cm |
|---|---|---|---|
| Control Distance: | ≥100m/can Be Customized ≤2000m | Panel & Button Material: | Stainless Steel |
| Function: | Waterproof | Warranty: | 12 Months |
| Max. Current: | Tiny Current | Color: | Yellow And Sliver |
| High Light: | DC12V industrial wireless radio remote control,100m industrial wireless radio remote control |
||

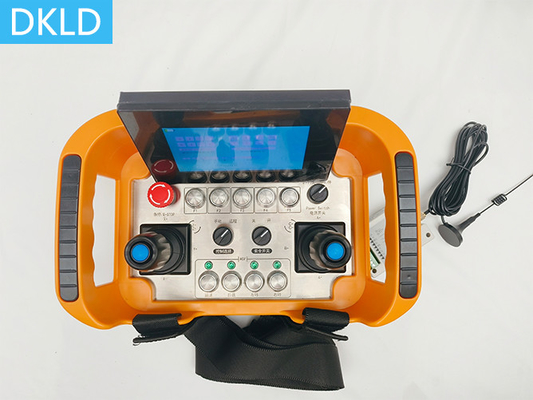

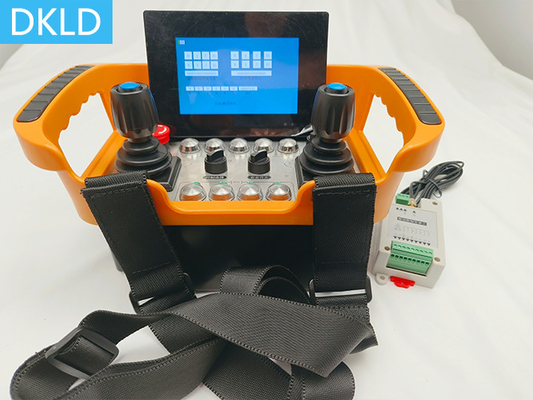

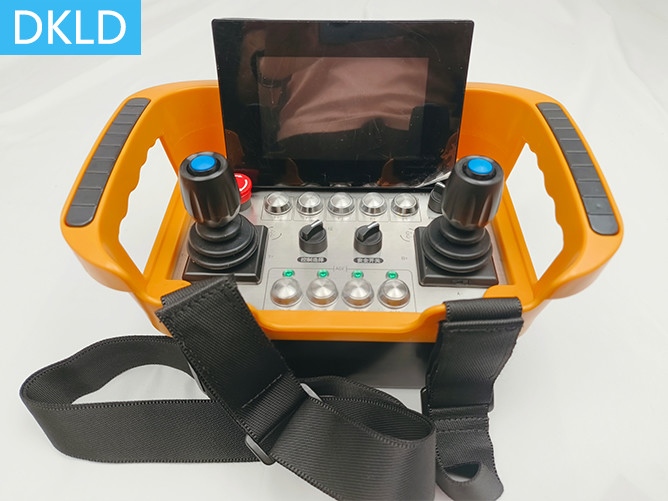

AGV Industrial Wireless Remote
Control For Small Cars
Specification
| Model | DHZ-2Y3W9F5ZSD5CMPRS485 |
| Transmitter Function | 20 single-speed buttons |
| Size | 260*160*65cmm |
| Transmitter Weight | 1.5kg |
| Transmitting fraquency | 433MHz |
| Frequency channel | 50~256 |
| Controlling distance | ≥100m/can be customized |
| Direction of movement | Up, down, East, South, West, North |
| Transmitter Antenna | inside |
| Receiver Antenna |
Inside / optional external antenna |
| Button life | ≥ 1 million times |
| Panel material | stainless steel |
| Button material | stainless steel |
| Shell material | 90% industrial reinforced nylon plastic + 10% industrial chemical fiber |
| Transmitter power supply | DC4.5 (3 pcs alkaline batteries) |
| Receiver power supply | DC12V/24V or AC 36V/220V/380V (AC by external transformer) |
| Temperature range | -25℃~+75℃ |
| Button Text | Arrow / English / Chinese |
| Enclosure protection class | IP65 |
| Application | AGV car |
Product Description
Product Features
Our products are different from the plastic remote controller on the market. The stainless steel remote control is more robust and not easy to be damaged.
1. Stable control signals will ensure no interference during use. The unique signal is encrypted and coded, and there is no interference when using multiple sets of remote controllers in an environment.
2. Stainless steel panel and buttons, more resistant to be broken and smudge.
3. The transmitter is sealed with silicone rubber ring, which is good waterproof.
4. Heartbeat packet detection:Once the transmitter is damaged or the signal is lost, the receiver will stop automatically.
5. The antenna is built inside to prevent it from being broken.
6. Each set remote control has unique ID identification code, even if the same frequency also does not interfere with each other.
Emergency stop button for safety
Default configuration
1. Transmitter * 1 piece
2. Receivers * 1 piece
3. The receiver comes with 1m cable connector
4. Operation and Maintenance Manual
Default configuration
1. Transmitter * 2 pieces
2. Receivers * 1 piece
3. The receiver comes with 1m cable connector
4. Operation and Maintenance Manual
Attentions
1. Due to transportation requirements, the product is not equipped with battery.
2. When you order, please remark the voltage, DC12V/24V or AC220V/380V(AC by external transformer).
1. Customized logo and trademark are warmly-welcomed.
2. Good after-sale services offered.
3. 1 year warranty period, spare parts supply for free.
4. 100% QC inspection before shipment.
